| Brand Name: | Xingtongli |
| Model Number: | GKD12-500CVC |
| MOQ: | 1 |
| Price: | 600~985USD |
| Packaging Details: | standard export packaging |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
In the world of PCB electroplating, rectifiers play a vital role in ensuring efficient, high-quality metal deposition on circuit boards. These rectifiers convert alternating current (AC) to direct current (DC), providing a steady and controlled current for the electroplating process. By regulating current and voltage, they enable operators to precisely control the plating rate, which directly affects the quality of the metal coating. By properly managing voltage and current settings, operators can optimize the thickness and uniformity of the electroplated metal on the PCB surface, ensuring that the final product meets strict industry standards.
Industrial power supply for PCB plating 12V 500A data sheet
| Parameter | Value |
| Input Voltage | 3-phase AC 380V ± 10%, 50Hz |
| Output Voltage | DC 0 ~ 12V |
| Output Current | DC 0 ~ 500A |
| Output Voltage Precision | ≤1% |
| Output Current Precision | ≤1% |
| Rated Efficiency | ≥89% |
| Cooling Mode | Air-cooled |
| Control Mode | Remote control with 6 meters cable |
| Protection Features | Overvoltage, overcurrent, overload, short circuit, overheating |
| Size (W x H x D) | 600 x 380 x 225 mm |
| Weight | 35 kg |
| Environmental Conditions | -20°C to 40°C ambient temperature, ≤90% humidity |
Feature
The 12V 500A electroplating rectifier with dimensions of 600×380×225mm and a weight of 35kg is designed to provide a stable and high-performance power supply for electroplating applications. This type of rectifier is typically used in industrial settings for processes such as copper plating on PCB substrates and through-hole plating, ensuring efficient metal deposition.
This rectifier features:

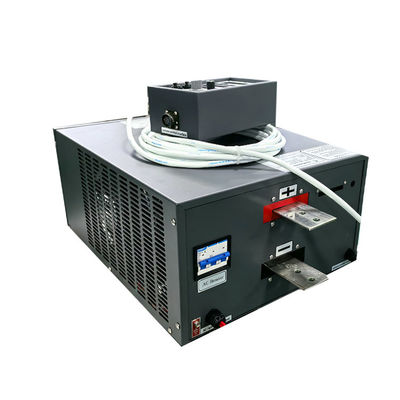

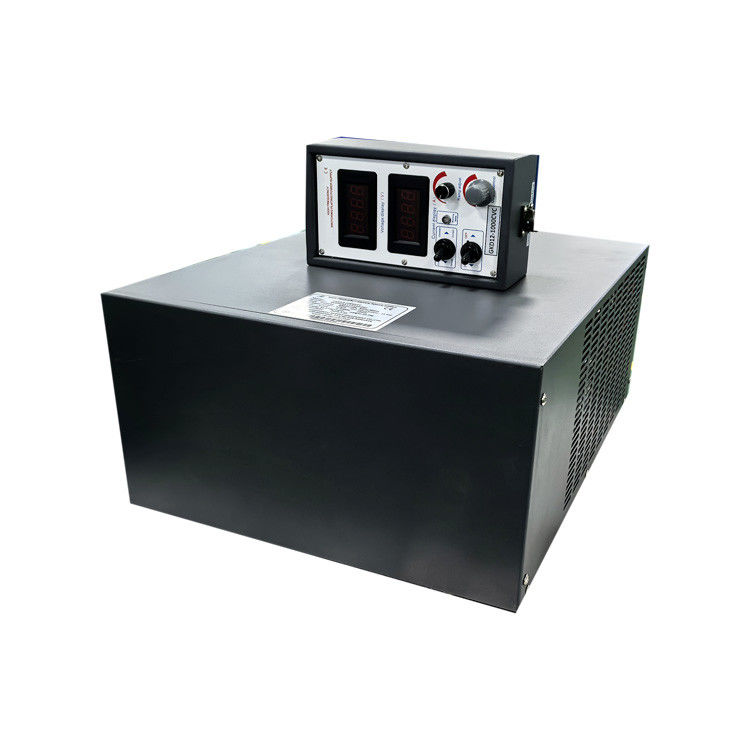

Picure:
In conclusion, high-frequency switched rectifiers are essential in modern PCB electroplating applications, providing the necessary efficiency, stability, and compactness required to meet the increasing demands of the electronics manufacturing industry.
|
