| Brand Name: | xingtongli |
| Model Number: | GKD12-100CVC |
| MOQ: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | Single wooden case packing size: 440*380*190mm Weight:21kg |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

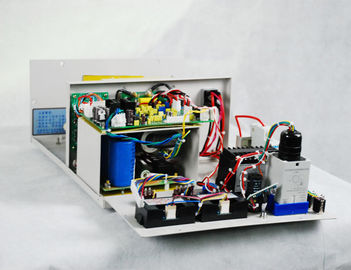

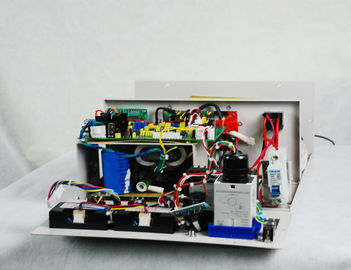

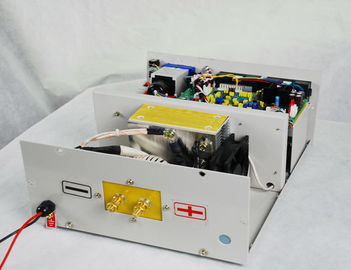

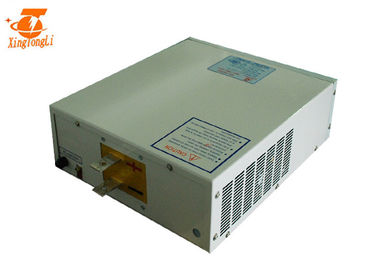

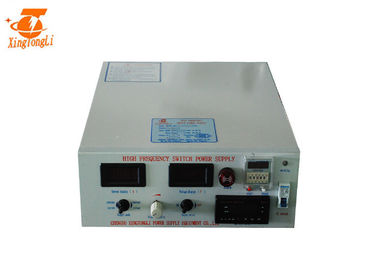

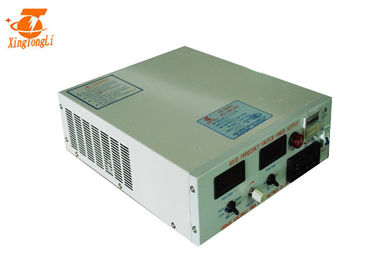

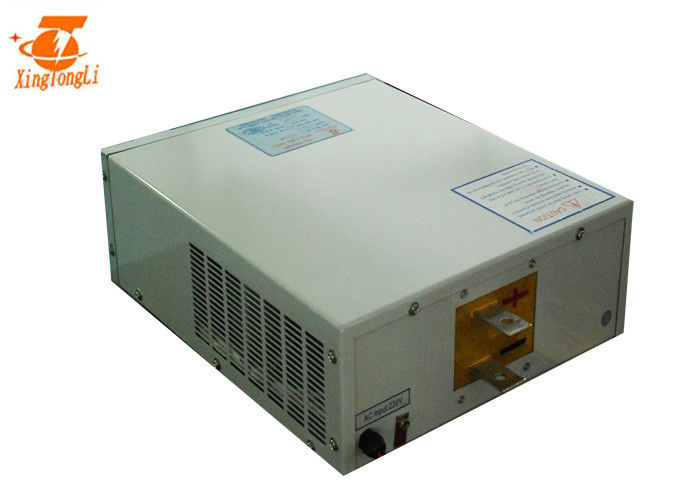

High frequency switching plating rectifier, also called as HF switching power supply:
Which is a new type electro plating machine plating rectifier – high frequency switching power supplies. It combines advantages of silicon rectifier waveform smoothness and silicon controlled rectifiers voltage easy adjustment, while has highest current efficiency (up to 90%), the most smallest volume, and needless to say, it is the most promising plating rectifier. Manufacturing technology has solved the power problem, thousands of amperes power switching plating rectifiers have entered a practical stage of application.
Plating rectifier specification and parameter: |
|
| Plating rectifier Input voltage | Single phase 110V/220V AC |
| Output voltage | 0~12v adjustable |
| Output current | 0-100A adjustable |
| Voltage stability | ≤1% |
| Current stability | ≤1% |
| Ripple factor | 1%-2% |
| Efficiency | ≥90% |
| Stabilization mode | Current stabilization/Voltage stabilization (Switchable easily) |
| Adjustment range | Voltage/Current from 0-100% continuously adjustable within rated range |
| Cooling system | Air cooling/Water cooling |
| Control method | Manual/PLC |
| Display contents | Voltage meter/Current meter/Working/Over temp/Error, etc.. |
| Protection method | Input over-voltage/Under-voltage/Over current/Output short/Over heating self protection etc.. |
| Operating temperature | -20-50℃ |
| Ambient temperature | -30-65℃ |
| Ambient humidity | ≤90% |
| Working loading | Full capacity operation, more than 1,000 meters above sea level, reduced load operation |
Electroplating high-frequency switching plating rectifier main conversion structure has: forward converter, half bridge, full-bridge, etc., have pulse-width modulation (PWM) “hard switch” circuitry,also have popular phase-shift control “soft switch ” power circuit.Pulse width modulation (PWM) HF switching plating power supply, its operating frequency mostly below 50 KHz, with a voltage or current feedback control.It change the drive voltage pulse width to alter output current by interrupting power flow and adjust the duty cycle method, make the device working in the “hard switching” state, ie forcing conduction (voltage is not zero) or forced shutdown (current is not zero), making the switching power transistor both exist high pressure and large current cross when switch on and off, therefor switching loss less, peak interference strong.
| 1, Placing 12v 100a air cooling local control High frequency switching electroplating rectifier and keep the body stability; ensure good ventilation. |
| 2,Checking 12v 100a air cooling local control High frequency switching electroplating rectifier out cover if any loosing. |
| 3, Connecting the machine shell to ground to prevent static electricity. |
| 4, Conecting the AC input wire |
| 5, Connecting the 12v 100a air cooling local control High frequency switching electroplating rectifier DC output copper bars with the bath + - copper bars |
| 6, Connecting the remote control box,if local control ,skip this step |
| 7, Turn on air switch, then the fan starts to rotate and the power indicator light. |
| 8, Clockwise rotation adjustment button, voltmeter degree increases, working indicate light lighting. |
| 9, Adjust knob to maximum, then the voltmeter should indicate the rated voltage, current meter indicates the load volume accordingly. |
| 10, Disconnect the air switch, turn off the power |
|
